(sofort verfügbar) Heltec Helium Hotspot
CHF490.00
lieferbar
Produktbeschreibung
Gerät ist an Lager. Versand sofort nach Zahlungseingang.
Kommt mit einem EU-Schuko-Strom-Stecker. Bitte bestellen Sie bei Bedarf einen EU-CH-Adapter dazu.

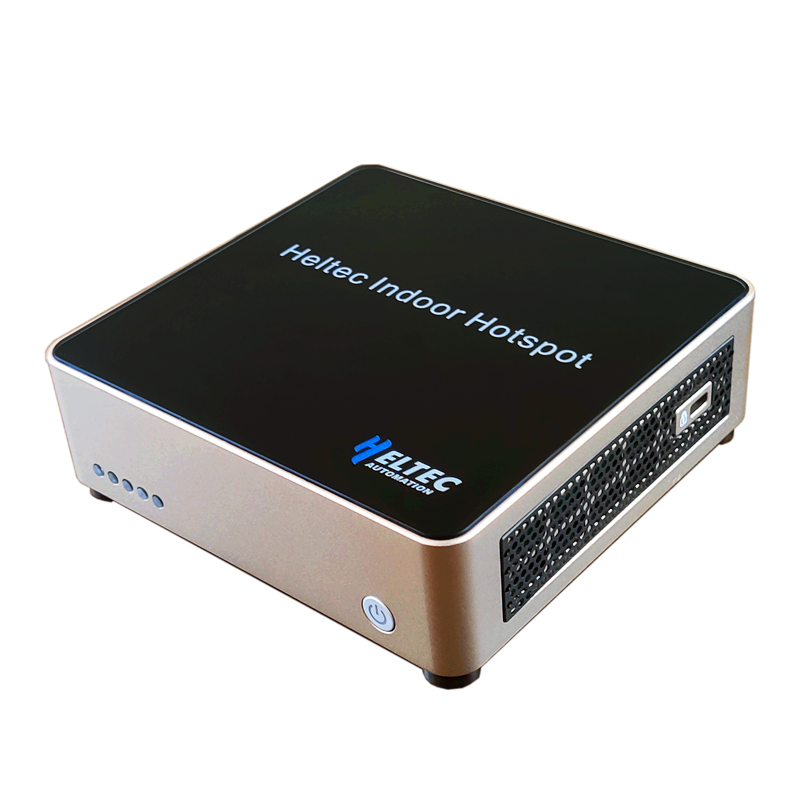

Heltec Indoor Hotspot (HT-2808) main attributes:
-
Main hardware
- CPU: Quad-core Cortex-A53 64-bit 1.5GHz;
- RAM: 2G DDR4;
- ROM: 32G eMMC 5.1;
- LoRa baseband: SX1308 + SX1255/7 chipset.
-
Network Connection
- Wi-Fi: 2.4GHz/5GHz
- Bluetooth: BT V5.0 EDR and BLE
- Ethernet: 10/100M
-
Body size
- Without footpads and SMA antenna socket: 120 * 115 * 35
- Include footpads and SMA antenna socket: 120 * 122.5 * 40
-
Interface and interactive
- 5.5mm diameter socket: 12V DC power source input;
- RJ45 socket: Ethernet connection;
- Anti-theft lock hole: Anti-theft lock interface;
- Power Button with Blue LED;
- SMA Socket: LoRa antenna with inner holes and threads;
- Type C Socket: Firmware flash during production and system recovery for user;
- 1mm diameter hole: System recovery trigger, need to cooperate with the reset button or power-on sequence.
-
Status indication LEDs
- Power Button with Blue LED
-
- Five minutes blinking after power-on, Bluetooth can be connected at this time;
- The Bluetooth connection is successful or the flickering stops after five minutes of booting.
- White — System Status
- Light up: System running.
- Blue — Wi-Fi connection status
- Orange — Blockchain synchronization instructions
- Blink: Syncing
- Steady ON: synchronization is over
- Green — LoRa receive
- Red — LoRa transmit
-
Other highlight function
- A keyhole is reserved, which can be used for anti-theft.
- Heltec Indoor Hotspot has a cooling fan inside, which can be used to take away the heat generated by the operation of the system to ensure long-time stable operation.
